Matrix: 1/1.7″ CMOS Effective Pixels: 48MP
Lens: Field of View (FOV): 155° Equivalent Focal Length: 12.7mm Focal Length: 2.34mm Aperture: f/2.8 Focus Mode: FF Focus Range: 0.6m to ∞.
ISO range: 100-6400 (Auto) 100-25600 (Manual)
Snapshot: Roll Shutter
Field of View (FOV): 155°
With DJI Goggles 2: 4K @ 50/60FPS 2.7K @ 50/60/100FPS 1080p @ 50/60/100FPS
With DJI FPV Goggles V2: 4K @ 50/60FPS 2.7K @ 50/60/100/120FPS @ 1080p 50/60/100/120FPS
Video Format: MP4
Electronic Image Stabilization (EIS): The product supports RockSteady technology.
Weight: 8.3g (including coaxial cable)
Air Unit Module:
Air Unit (without Camera Unit): Approx. 28g
Air Unit (including Camera Unit): Approx. 36.4g
Antenna: Approx. 3g
Dimensions (L x W x H):
Transmission module: 32.5 x 30.5 x 14.5mm (L x W x H)
Camera module: 21.2 x 20 x 19.5mm (L x W x H)
Coaxial cable: 115mm (length )
3-in-1 cable: 100mm (length)
Antenna: 85mm (length)
2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX)
Transmission power (EIRP): FCC: <33dBm CE: <14dBm SRRC: <30dBm
Live view quality and end delay:
With DJI FPV Goggles V2: 810p/120FPS video transmission quality: less than 28ms latency. 810p/60FPS video streaming quality: less than 40ms latency.
With DJI Goggles 2: 1080p/60FPS video streaming quality: less than 30ms latency. 1080p/60FPS video streaming quality: less than 40ms latency.
Video Transmission Range: 10km (FCC), 2km (CE), 6km (SRRC)
Flight controller software supported: Compatibility with flight controller software that supports Betaflight. Please see the product FAQ for more information.
Input Voltage: 7.4-26.4V
Working temperature: -10°C to 40°C (14°F to 104°F)
Channels: Auto mode support Manual mode support: 40 MHz: 1 channel; 20MHz: 3 channels; 10MHz: 3channels;
Channel information: FCC / SRRC / CE: 40 MHz: Ch 1: 5794.5 MHz 20 MHz / 10 MHz: Ch 1: 5768.5 MHz Ch 2: 5804.5 MHz Ch 3: 5839.5 MHz
Supported SD cards: MicroSD (up to 256GB)
Recommended MicroSD cards:
SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus U3 V30 A2 256GB microSDXC
Using DJI Goggles 2 and tested in an outdoor open environment without interference.
The 155° FOV is only available when using the 4:3 aspect ratio, and when the video recording specification is at 2.7K@50/60fps or 1080p@50fps/60fps; the aspect ratio is 16:9, and the video recording specification is at 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps.
4K/60fps videos do not support the aspect ratio of 4:3, and only support that of 16:9.

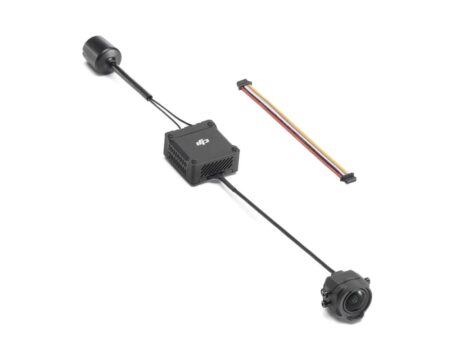

1x DJI O3 Air Unit Transmission Module
1x DJI O3 Air Unit 3-in-1 Cable
1x DJI O3 Air Unit Antenna
1x DJI O3 Air Unit Camera
